Quick Details

  • Place of Origin: Fujian, China (Mainland)
  • Brand Name: SolarFirst
  • Model Number: SF-TH-90W
  • Material: Amorphous Silicon, Use the environmental friendly materials.
  • Size: 1414*1114*24mm
  • Number of Cells: 1pcs
  • Max. Power: 90W
  • Warranty time: 5-8years
  • Weight: 20.3KGS
  • Maximum power voltage: 77V
  • Junction Box: BIPV
  • color: pink, red, blue, yellow
  • Application: Home,Commercial,Industrial
  • Product name: solar panel,thin film solar cell/thin film laminated solar panel

Packaging & Delivery

Packaging Details: solar panel,thin film solar cell/thin film laminated solar panel packing: Export carton or at your requests,
Q'ty/20': 448pcs (44.8kw) Q'ty/40': 960pcs (96kw)
Delivery Detail: 9-11 days after confrimed order

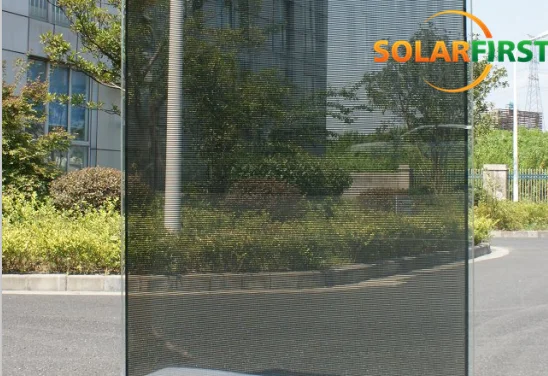

solar panel,thin film solar cell/thin film laminated solar panel

specification of solar panel,thin film solar cell/thin film laminated solar panel

                                                     Electrical Specification
SpecificationSF-ST1-48SF-ST1-64SF-ST1-72
Nominal Power(Pm)48W64W72W
Open Circuit Voltage(VOC)116V116V116V
Short Circuit Current(Vm)0.59A0.78A0.88A
Voltage at max. Power(Vm)87V87V87V
Current at max. Power(Im)0.5A0.73A0.82A
Transparency40%20%10%
                                                     Mechanical Specification
Length1200mm
Width600mm
Thickness6.8mm
Are0.72m2
Weight 11.8kg
FrameNone
Lead Cable2.5mm2,700mm
ConnectorsMC4
ByPASS Diode10A
Cell TypeCadmium Telluride(CdTe)
Back GlassTempered/Tinted/UV reduction
Encapsulation

EVA/PVB




Project case of solar panel,thin film solar cell/thin film laminated solar panel

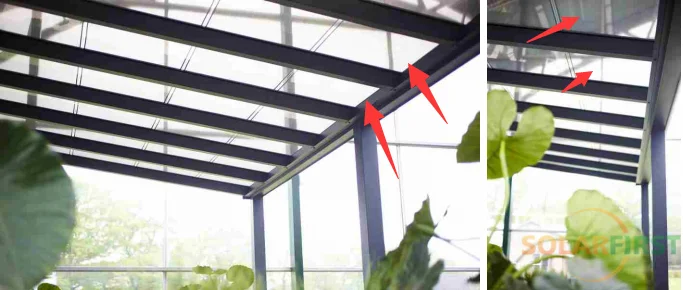

<1>PV Skylight in Europe(3*0.6M Large Size Semi Transparent Module)

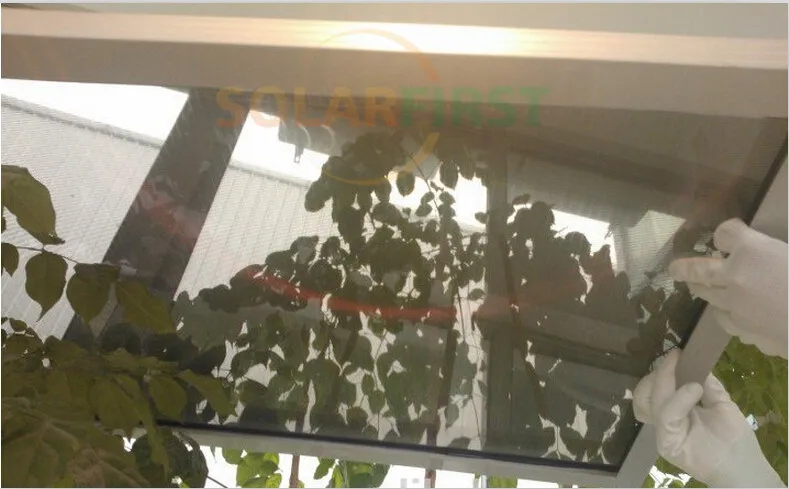

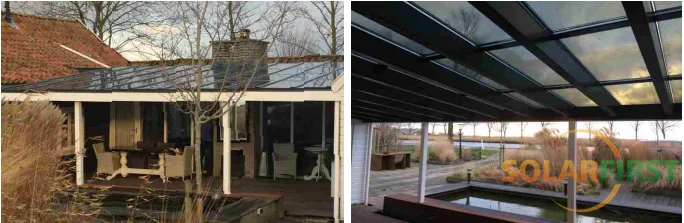

<2>Seni-Transparent PV Corridor/Verandas.
<3>Meeting Room with PV Skylight in Netherlands

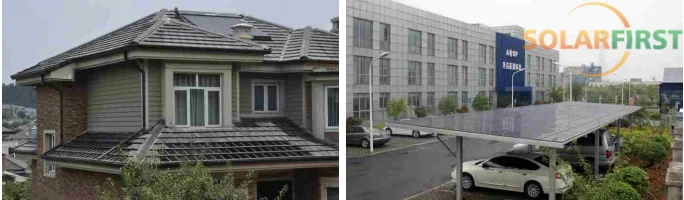

<4> PV Tiles                                                   <5>PV Carport

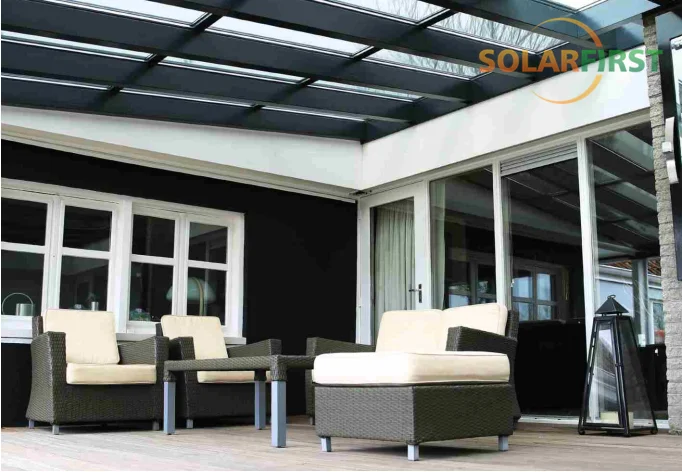

<6> PV Canopy in Netherlands

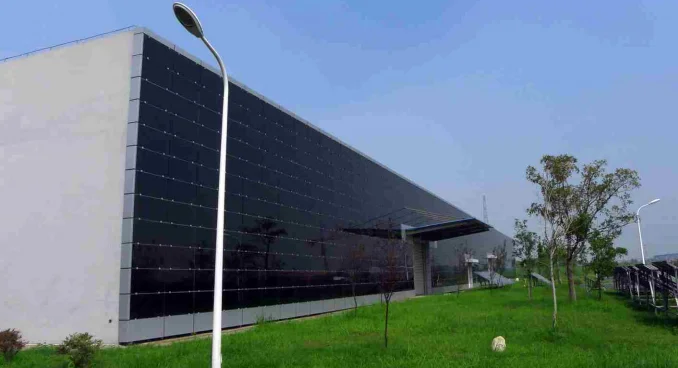

<7>PV Facade
<8>USA thin film solar panel roof projec
Packaging & shipping for solar panel,thin film solar cell/thin film laminated solar panel
FAQ for solar panel,thin film solar cell/thin film laminated solar panel
Q 1. Color will affect efficiency?
Usually color doesn't affect efficiency.

Q 2. More transparancy, more efficiency?
Nope. Because broader the space between particles, higher the transparency, and lower the efficiency.

Q 3. Glass is durable enough for safety's sake?
Tempered glass is covered with PVB material to avoid fragmented breaking.

Q 4. Particular staff in respond of this product?
Feel free to contact Skype: sales4_solarfirst or mail: sales4@esolarfirst
